As a fan of A.I. LLM and chat bots, I often pose questions to them to learn more about my hobbies. In this case, I tried Alibaba's Qwen 2.5-Max for a discussion of various In Ear Monitor sound production technologies.
My prompt: Take a deep dive into the two primary technologies associated with sound production in in ear monitors, namely dynamic drivers and balanced armatures - where are the technologies going and what are the theoretical limitations? Then look at the less used technologies of planar drivers and electrostatic models.
Qwen2.5-Max (Response)
In-ear monitors (IEMs) have become increasingly sophisticated over the years, with manufacturers employing various driver technologies to achieve specific sound signatures and performance characteristics. The two primary driver technologies used in IEMs are dynamic drivers and balanced armature (BA) drivers , but there are also less common technologies like planar magnetic drivers and electrostatic drivers that offer unique advantages and challenges. Let’s take a deep dive into each of these technologies, their current state, future trends, and theoretical limitations.
1. Dynamic Drivers
How They Work:
Dynamic drivers operate on the same principle as traditional loudspeakers. They consist of a diaphragm (usually made of materials like PET, beryllium, or graphene), a voice coil, and a magnet. When an electrical signal passes through the voice coil, it creates a magnetic field that interacts with the permanent magnet, causing the diaphragm to move back and forth, producing sound waves.
Advantages:
- Bass Response : Dynamic drivers excel at producing deep, impactful bass due to their larger diaphragm movement (excursion). This makes them ideal for genres like EDM, hip-hop, and pop.
- Natural Sound : Because dynamic drivers mimic the way traditional speakers work, they often produce a more natural and cohesive sound signature across the frequency range.
- Cost-Effective : Single dynamic driver IEMs are typically more affordable to produce compared to multi-driver setups, making them popular in budget-friendly models.
Limitations:
- Detail and Clarity : While dynamic drivers can produce excellent bass, they may struggle with the same level of detail and clarity in the mids and highs compared to balanced armature drivers. This is because the larger diaphragm has more inertia, which can limit transient response.
- Size : Dynamic drivers tend to be bulkier than balanced armatures, which can make it harder to fit multiple drivers into a compact IEM shell.
Future Trends:
- Material Innovations : Manufacturers are experimenting with advanced materials like graphene, beryllium, and DLC (diamond-like carbon) coatings to improve stiffness and reduce distortion, leading to better transient response and overall sound quality.
- Hybrid Designs : Many high-end IEMs now use hybrid designs, combining dynamic drivers for bass with balanced armature drivers for mids and highs. This trend is likely to continue as manufacturers seek to balance the strengths of both technologies.
- Miniaturization : Advances in manufacturing techniques are allowing for smaller dynamic drivers, enabling more complex multi-driver configurations in compact IEMs.
Theoretical Limitations:
- Diaphragm Inertia : The physical mass of the diaphragm limits how quickly it can respond to changes in the audio signal, affecting transient response and detail retrieval.
- Distortion : At high volumes, dynamic drivers can introduce distortion due to nonlinearities in the diaphragm's movement or the voice coil's behavior.
2. Balanced Armature (BA) Drivers
How They Work:
Balanced armature drivers use a small armature (a balanced lever) suspended between two magnets. When an electrical signal is applied, the armature moves, driving a diaphragm to produce sound. Unlike dynamic drivers, BAs do not rely on large diaphragm movements, making them highly efficient and capable of delivering precise sound reproduction.
Advantages:
- Detail and Clarity : Balanced armature drivers are renowned for their ability to reproduce intricate details, especially in the midrange and treble frequencies. This makes them ideal for genres like classical, jazz, and acoustic music.
- Compact Size : BAs are much smaller than dynamic drivers, allowing manufacturers to fit multiple drivers into a single IEM shell. This enables complex multi-driver setups that can cover different frequency ranges.
- Efficiency : BAs are highly efficient, meaning they can produce high sound pressure levels (SPL) with relatively low power consumption, making them ideal for portable devices.
Limitations:
- Bass Response : Balanced armature drivers struggle to produce deep, impactful bass due to their limited excursion capabilities. As a result, many BA-based IEMs require additional drivers or passive radiators to enhance bass performance.
- Cost : High-quality balanced armature drivers are expensive to produce, especially when multiple drivers are used in a single IEM. This can drive up the cost of BA-based IEMs significantly.
- Sound Cohesion : Multi-driver BA setups can sometimes suffer from phase issues or lack of coherence between drivers, leading to a disjointed sound if not properly tuned.
Future Trends:
- Multi-Driver Configurations : The trend toward multi-driver BA setups (e.g., 4BA, 6BA, or even 10+ BA drivers) is likely to continue, with manufacturers focusing on improving crossover design and tuning to ensure seamless integration between drivers.
- Improved Bass Performance : Some manufacturers are experimenting with new BA designs that can produce better bass response, reducing the need for additional dynamic drivers in hybrid setups.
- Custom Tuning : Advances in digital signal processing (DSP) and custom tuning profiles will allow users to fine-tune the sound signature of BA-based IEMs to their personal preferences.
Theoretical Limitations:
- Limited Excursion : The small size and limited movement of the armature restrict its ability to produce deep bass and handle large volume swings.
- Complexity : Multi-driver BA setups require complex crossovers and careful tuning, which can introduce phase issues and increase production costs.
3. Planar Magnetic Drivers
How They Work:
Planar magnetic drivers use a thin, flat diaphragm with conductive traces embedded in it. When an electrical signal is applied, the diaphragm interacts with a magnetic field created by arrays of magnets, causing it to vibrate and produce sound. Planar magnetic technology is more commonly found in over-ear headphones, but some manufacturers have started incorporating it into IEMs.
Advantages:
- Accuracy : Planar magnetic drivers are known for their exceptional accuracy and low distortion, making them ideal for critical listening and audiophile applications.
- Transient Response : The lightweight diaphragm allows for extremely fast transient response, resulting in precise and detailed sound reproduction.
- Wide Soundstage : Planar magnetic drivers can create a more open and spacious soundstage compared to dynamic or balanced armature drivers.
Limitations:
- Size and Weight : Planar magnetic drivers are inherently larger and heavier than dynamic or balanced armature drivers, making them challenging to fit into compact IEM shells.
- Efficiency : Planar magnetic drivers are less efficient than dynamic or balanced armature drivers, requiring more power to drive them. This can be a limitation for portable devices with limited amplification.
- Cost : Producing planar magnetic drivers is more expensive due to the complexity of the design and the need for high-quality magnets.
Future Trends:
- Miniaturization : Advances in materials science and manufacturing techniques may allow for smaller, more efficient planar magnetic drivers that can be integrated into IEMs without compromising sound quality.
- Hybrid Designs : Some manufacturers are experimenting with hybrid designs that combine planar magnetic drivers with dynamic or balanced armature drivers to leverage the strengths of each technology.
Theoretical Limitations:
- Power Requirements : The inefficiency of planar magnetic drivers means they require more power, which can be a challenge for portable devices.
- Size Constraints : The larger size of planar magnetic drivers makes them difficult to integrate into compact IEM designs without sacrificing comfort or portability.
4. Electrostatic Drivers
How They Work:

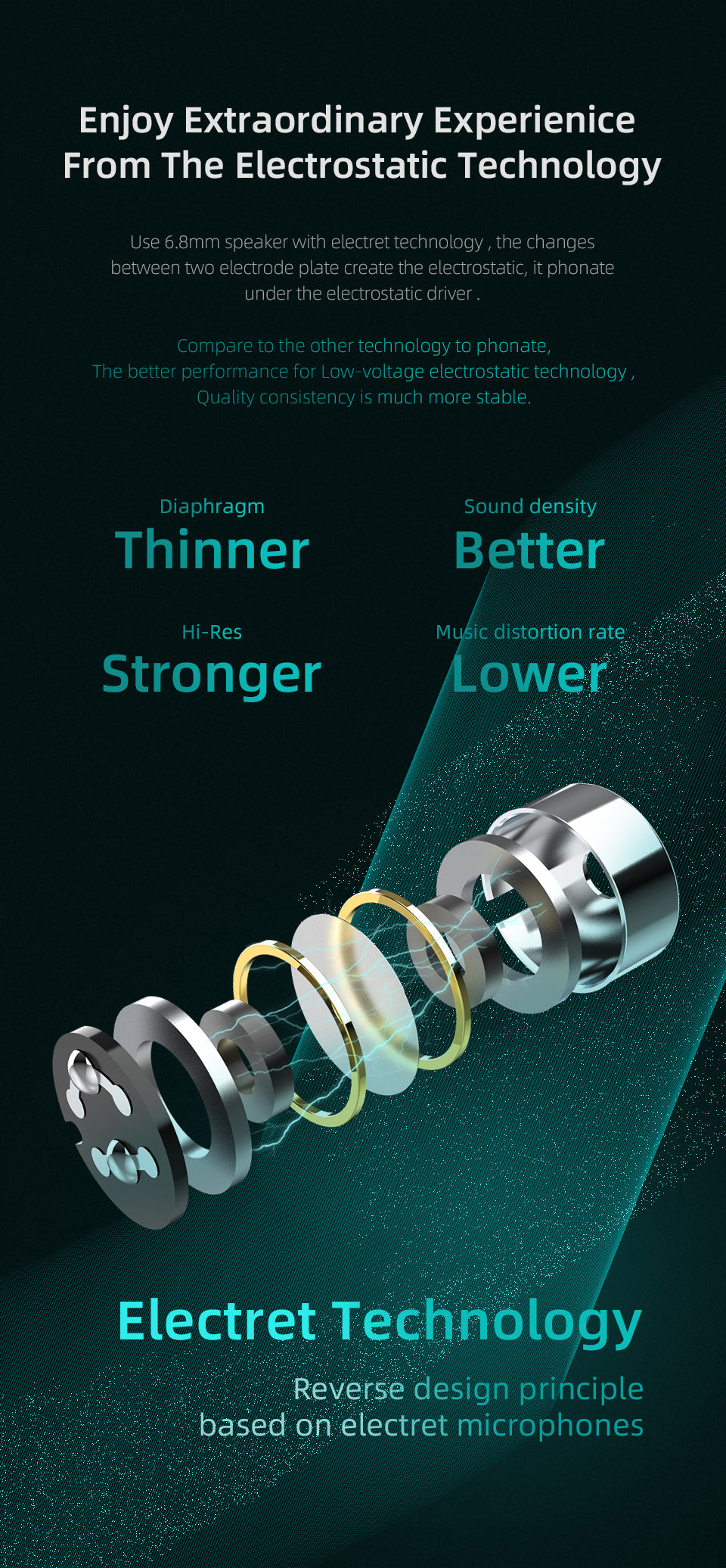

Electrostatic drivers use a thin, electrically charged diaphragm suspended between two perforated metal plates (stators). When an electrical signal is applied, the diaphragm moves back and forth between the stators, creating sound waves. Electrostatic technology is most commonly found in high-end over-ear headphones, but a few manufacturers have started using it in IEMs.
Advantages:
- Ultra-High Detail : Electrostatic drivers are capable of reproducing incredibly fine details and nuances in the music, making them the gold standard for audiophiles seeking the ultimate in sound quality.
- Low Distortion : Electrostatic drivers have extremely low distortion levels, resulting in a clean and transparent sound.
- Lightweight Diaphragm : The diaphragm is extremely lightweight, allowing for lightning-fast transient response and unparalleled clarity.
Limitations:
- High Voltage Requirement : Electrostatic drivers require a high-voltage amplifier to function, which adds complexity and cost to the system.
- Size and Cost : Electrostatic drivers are large, expensive, and difficult to miniaturize, making them impractical for most IEM designs.
- Limited Bass Response : Like balanced armature drivers, electrostatic drivers struggle to produce deep bass due to their limited excursion capabilities.
Future Trends:
- Miniaturization : While electrostatic drivers are currently too large for most IEM designs, advancements in materials and engineering could eventually lead to smaller, more practical implementations.
- Hybrid Designs : Some manufacturers are exploring hybrid designs that combine electrostatic drivers with dynamic or balanced armature drivers to address the bass limitations of electrostatic technology.
Theoretical Limitations:
- Voltage Dependency : The need for high-voltage amplification limits the portability and usability of electrostatic drivers in IEMs.
- Bass Response : Electrostatic drivers are inherently limited in their ability to produce deep bass, requiring additional drivers or technologies to compensate.
Conclusion:
Each driver technology has its own strengths and weaknesses, and the choice of driver depends on the desired sound signature and use case:
- Dynamic Drivers : Best for bass-heavy, natural-sounding IEMs. Future trends focus on material innovation and hybrid designs.
- Balanced Armature Drivers : Ideal for detailed, analytical sound. Future trends include multi-driver setups and improved bass performance.
- Planar Magnetic Drivers : Known for accuracy and wide soundstage. Challenges include miniaturization and efficiency.
- Electrostatic Drivers : Offer ultra-high detail and transparency but are limited by size, cost, and power requirements.
As technology advances, we can expect to see further innovations in materials, miniaturization, and hybrid designs that push the boundaries of what’s possible in IEM sound reproduction. Each technology will continue to evolve, offering audiophiles and casual listeners alike a wider range of options to suit their preferences.
